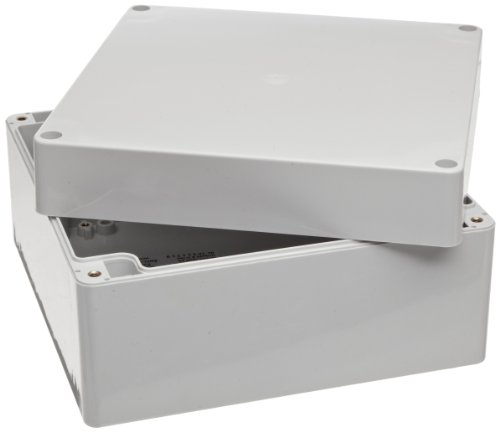

BUD Industries PN-1339 Polycarbonate NEMA 4x Box, 6-19/64" Length x 6-19/64" Width x 3-17/32" Height, Light Gray Finish

Product Review

Polycarbonate molded enclosures meet NEMA specifications and ideal for PCB enclosures, junction boxes and other applications in the electrical and electronic industries. Style 1 - Light gray polycarbonate body and cover. Body/Cover - UV stabilized , UL94-HB flammability rating, suggested service temperature -40C to 120C. Designed to IP66 of IEC 529 and NEMA 1, 2, 4, 4x, 12, and 13 specifications. UL listed. Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust. Internal guide slots for mounting PCB assemblies vertically. Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc, into threaded brass inserts (except PN-1320 and PN-1330). Cover screws are m-4 stainless steel, non-magnetic and fasten into threaded brass inserts. Gasket material: silicon sponge. Cover included design. External measures 6-19/64" length by 6-19/64" width by 3-17/32" height; internal measures 6-3/64" length by 6-3/64" width by 3-19/64" height.
