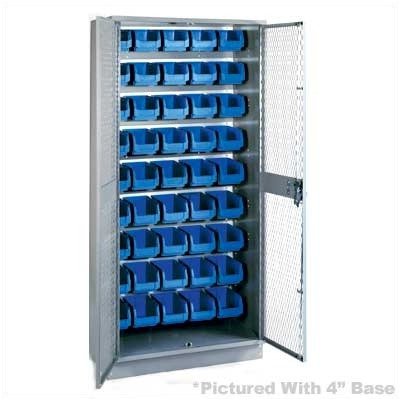

Lyon DD1154 Pre-engineered All Welded Visible Storage Deep Cabinet with 45 Plastic Bins, 36" Width x 18" Depth x 72" Height, Dove Gray

Product Review

Shelves bolt into place and are adjustable on 2" centers with payload capacity of 300 lbs each. Plastic bins, impervious to most solvents and corrosives, clip on and off galvanized pick racks bolted to cabinet back. All cabinets are 36" wide. Shelves are included, but not installed. All bins shown with pre-engineered units are 5-7/8" wide by 11-1/8" depth by 5" height with capacity of 285 cubic inches. Visible storage cabinets are equipped to accept padlock. Set up means product ships fully assembled. Expanded metal shall be 3/4" mesh 13-gauge flattened carbon steel providing approximately 74 percent open area. Gauge and other steel parts shall be as listed below. Bolts to be zinc-plated or subjected to other comparable rust-retardant treatment. All lockers shall be pre-assembled with all seams and joints welded for rigidity and durability. Sides shall be constructed with 13-gauge expanded metal with 20-gauge steel hemming welded to all four edges, resulting in a completely smooth frame around the expanded metal. The 16-gauge flat top and bottom shall be offset to extend into frame cross members. Backs shall be 18-gauge, cold-rolled steel. Individual sloping tops shall be 20-gauge cold-rolled steel. Four shelves 16-gauge supplied loose with unit. Flanged on sides and back-channel formation on front flange attached at no less than two points through each side flange. Shelves are adjustable by use of nuts and bolts. Shelf adjustment ranges from 8-3/4" at the bottom to 8-3/4" from the top. Steel parts shall be thoroughly cleaned, given a bonding and rust inhibitive phosphate treatment and a heavy coat of high-quality enamel. Complete locker must be finished in same color. Locking device shall consist of two 5/16" cold-drawn steel rods and 12-gauge center locking disc. Storage deep cabinet with 45 plastic bins. Available in Dove Gray color. Measures 36" width by 18" depth by 72" height.
